Product Description
Manufacturer Part Number: 5000C-630-LBM

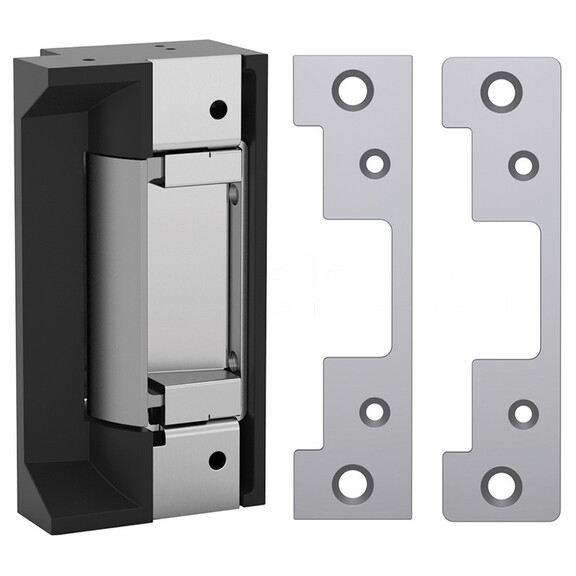

Grade 1 Electric Strike， Fail Safe/Fail Secure， 12/24 VDC， Latchbolt Monitor， Satin Stainless Steel
Its strength is derived from a unique keeper pin locking design， enabling the 5000 to exceed the ratings of the frame， door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.
Frame application
Electrical
Standard Features
Optional Features
Finishes
Grade 1 Electric Strike， Fail Safe/Fail Secure， 12/24 VDC， Latchbolt Monitor， Satin Stainless Steel
| Product Specs | |
| Vendor | Assa Abloy |
| Manufacturer | HES |
| SKU | 5000C-630-LBM |
| UID | HAN1005000CLBM630 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Multi-Application |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Finish | |
| Finish | |
| Finish Description | Satin Stainless Steel |
| Finish Family | Matte Silver |
| Technical Specs | |
| Function | Field Selectable (Safe/Secure) |
| Operating Voltage | 12VDC/24VDC |
| Amp Draw | .24 @ 12V .12 @ 24V |
| Keeper Size | 1/2 In. |
| Configuration | Centered |
| For Use With | Cylindrical Locks |
| Fire Rated | No |
| Holding Force | 1500 Lbs. |
| Switch Type | LBM |
| Frame Application | Metal or Wood |
| Product Type | Electric Strikes |
| Dimensions | |
| Product | |
| Product Length | - |
| Product Width | - |
| Product Height | - |
| Package | |
| Package Length | 10.5" |
| Package Width | 3.375" |
| Package Height | 2.25" |
| Package Volume | 79.73 |
| Package Qty | 1 |
| Ship Weight | 1.3 lbs. |
5000 Series Electric Strikes
The 5000 series is a compact， high performance electric strike designed for low profile openings where there is limited space behind the jamb.
Its strength is derived from a unique keeper pin locking design， enabling the 5000 to exceed the ratings of the frame， door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.
Frame application
- Metal
- Wood
Electrical
- .24 Amps at 12 VDC/VAC
- .12 Amps at 24 VDC/VAC
- DC continuous duty/AC intermittent duty only
Standard Features
- Tamper resistant
- Static strength 1，500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500，000 cycles
- Field selectable fail secure/ fail safe
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
- Strike body depth 1-1/16"
- Plug-in connector
- Trim enhancer included
- Five year limited warranty
Optional Features
- LBM - Latchbolt monitor
Finishes
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 629 - Bright stainless steel
- BLK - Black?
- *Complete Pacs are only available in the 630 finish?
